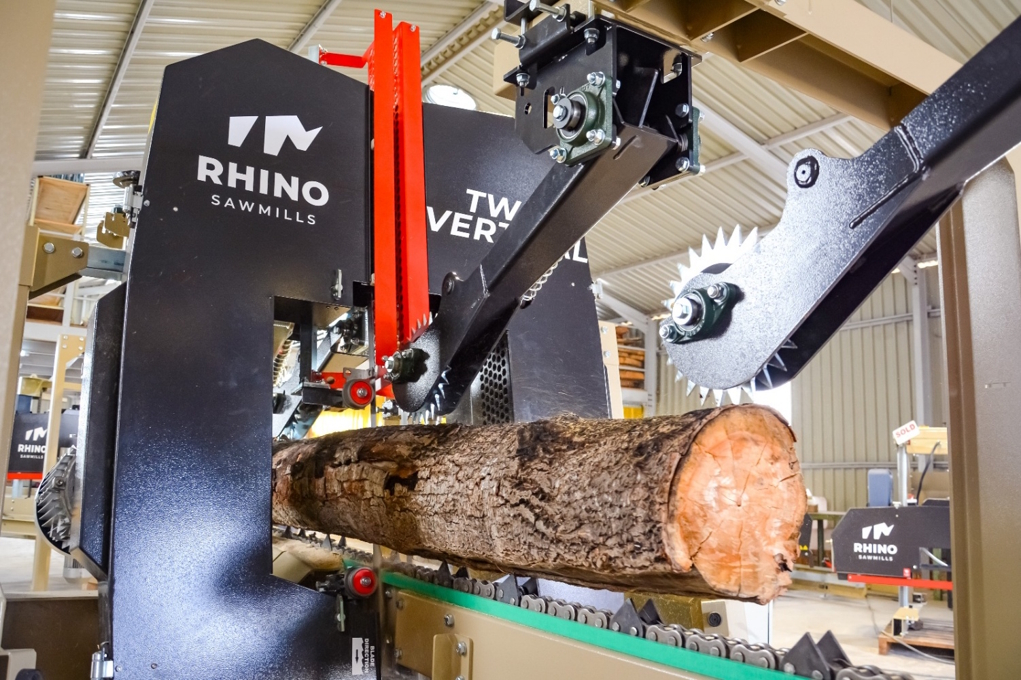

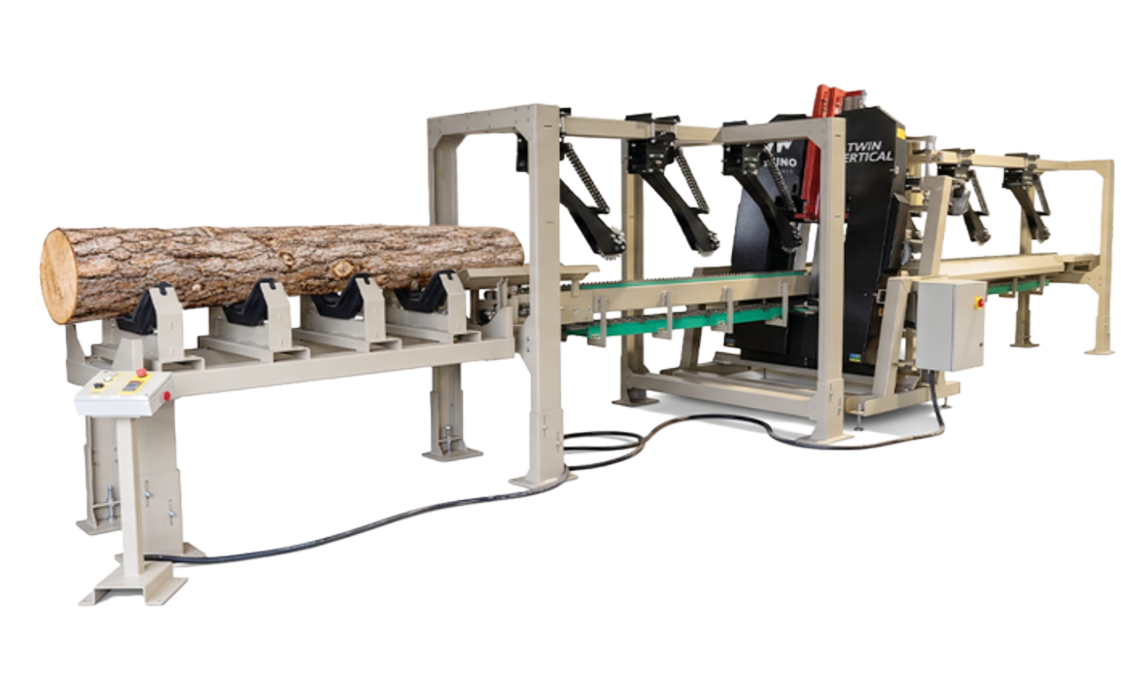

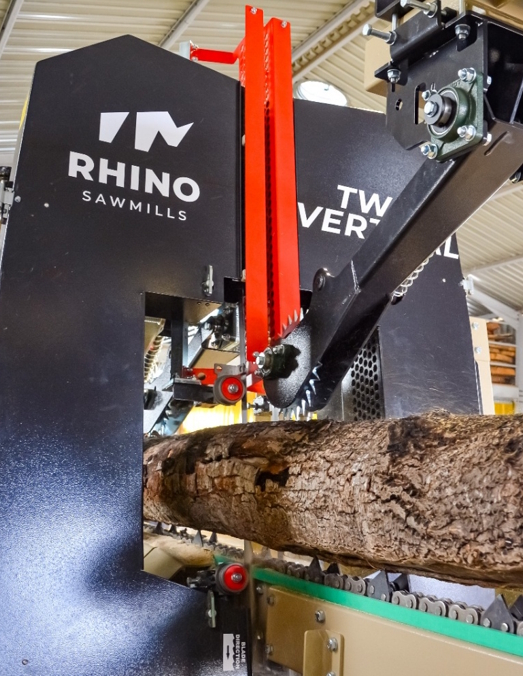

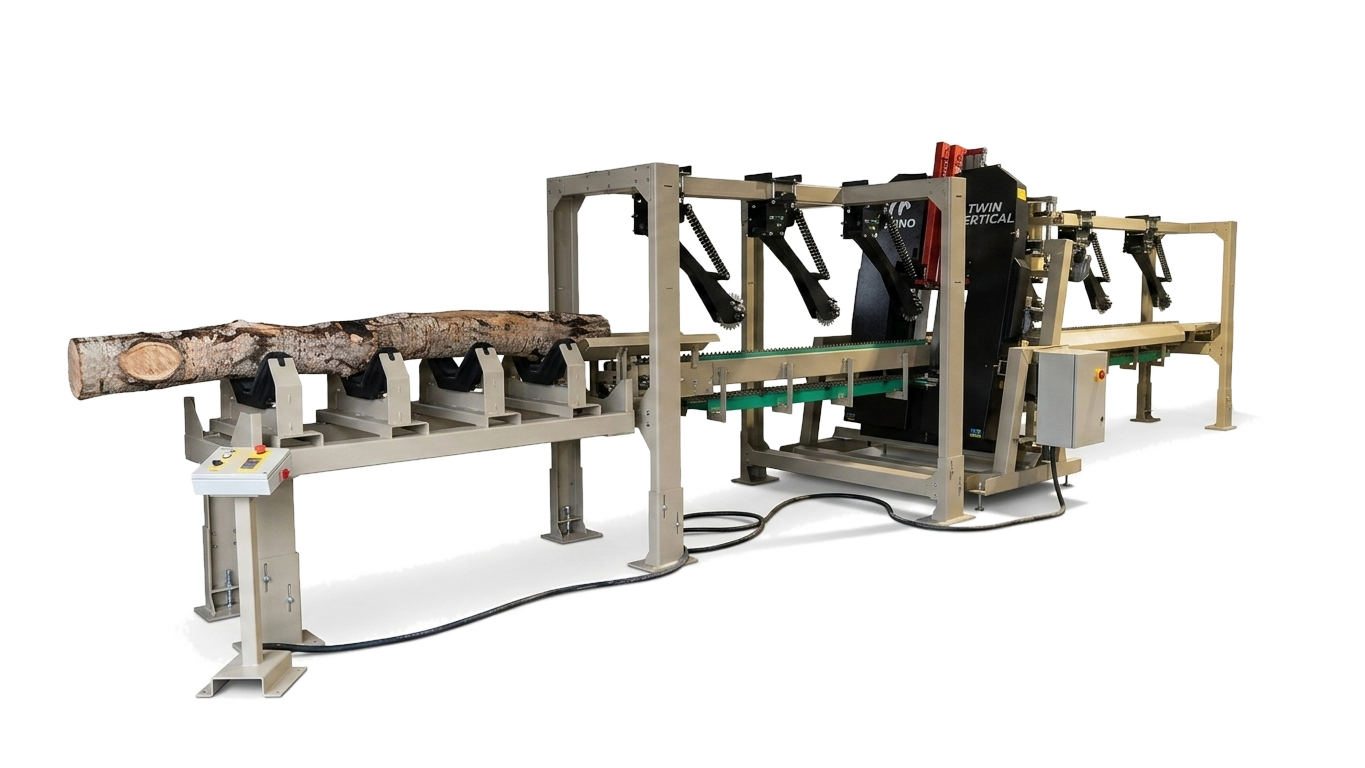

Designed for primary breakdown operations, this twin blade vertical saw with auto feed processes raw logs into two-sided cants in a single continuous pass. Used to dramatically boost your primary processing speeds and cut labor costs.
| Feature | Specification |
|---|---|
| Log Length (Min / Max) | 1m – 3m |
| Log Diameter (Min / Max) | 100mm – 450mm |
| Cutting Width (Min / Max) | 65mm – 350mm |
| Blade Motors | 11kW × 2 (22kW Total) |
| Chain Conveyor Motor | 1.5kW |
| Feed Speed | Adjustable |
| Blade Size | 4m |
| Head Adjustment | Manual |
Durable Chain Feed
Industrial Strength

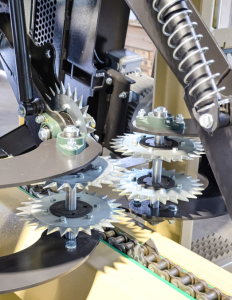

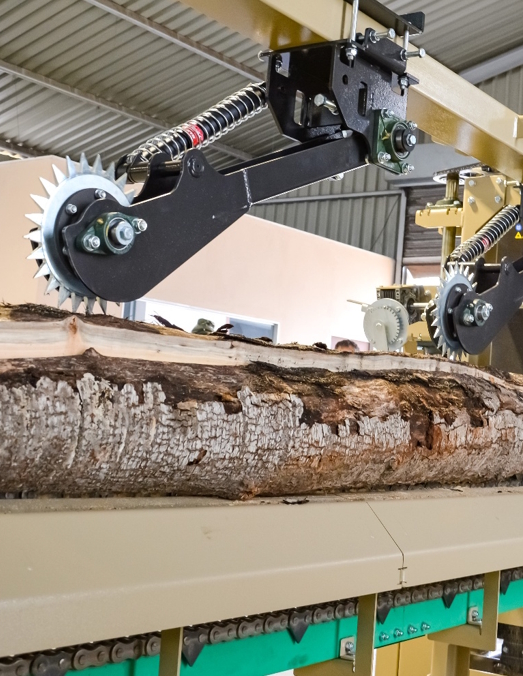

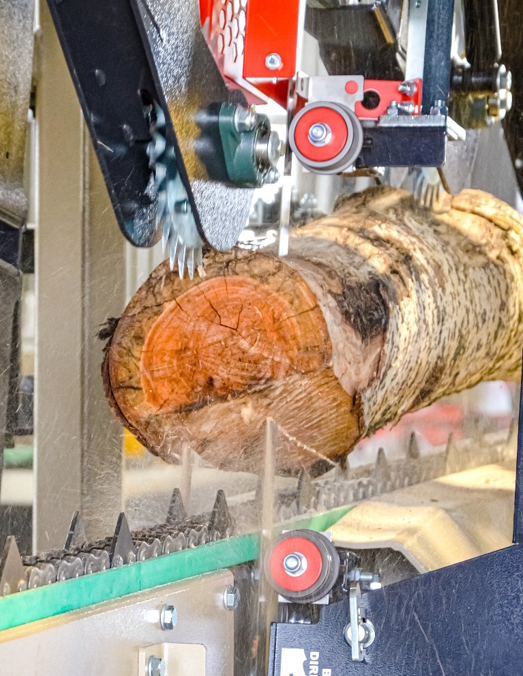

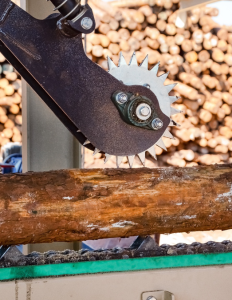

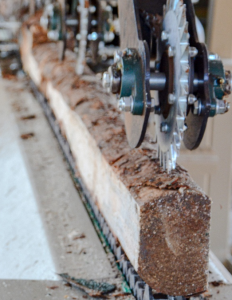

Equipped with spiked hold down and side log supports for smooth and even feeding throughout the cutting and outfeed process. Integrated outfeed system secures offcuts into the waste removal drop zone.

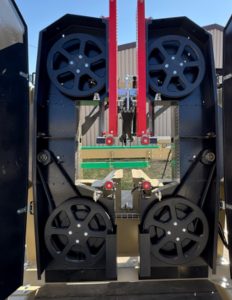

Steel bodied blade wheels mean far less wear and cracking compared to cast iron – giving a greatly superior blade wheel life thereby saving huge amounts in replacement costs and machine downtime.

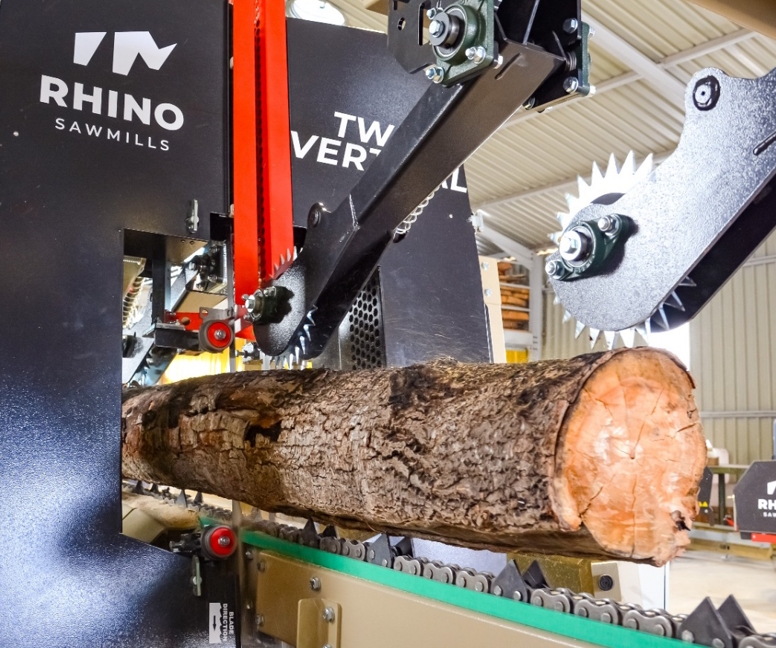

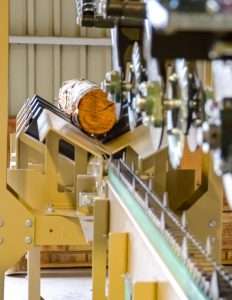

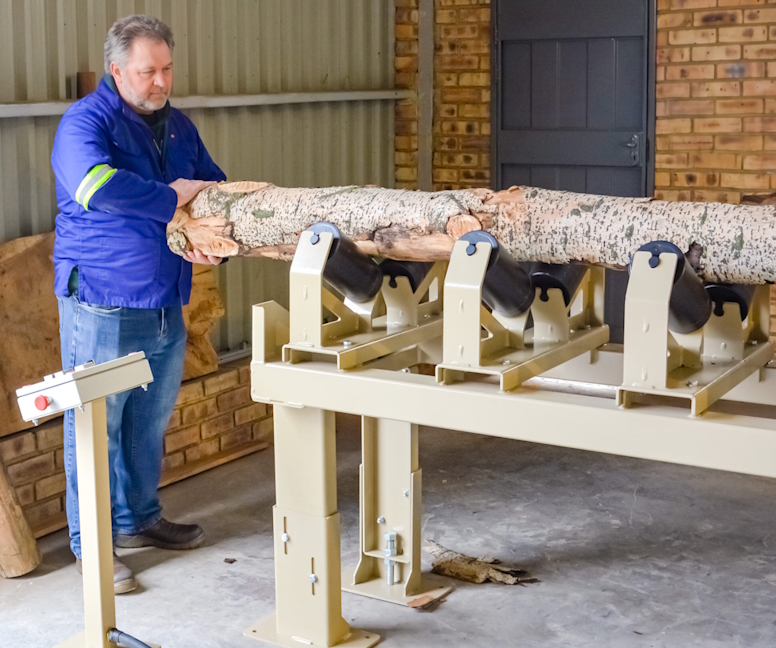

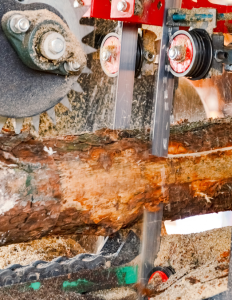

Easy orientation of logs on the in feed V-roller system coupled with spike chain feed and hold downs ensure precise positioning into the cut.

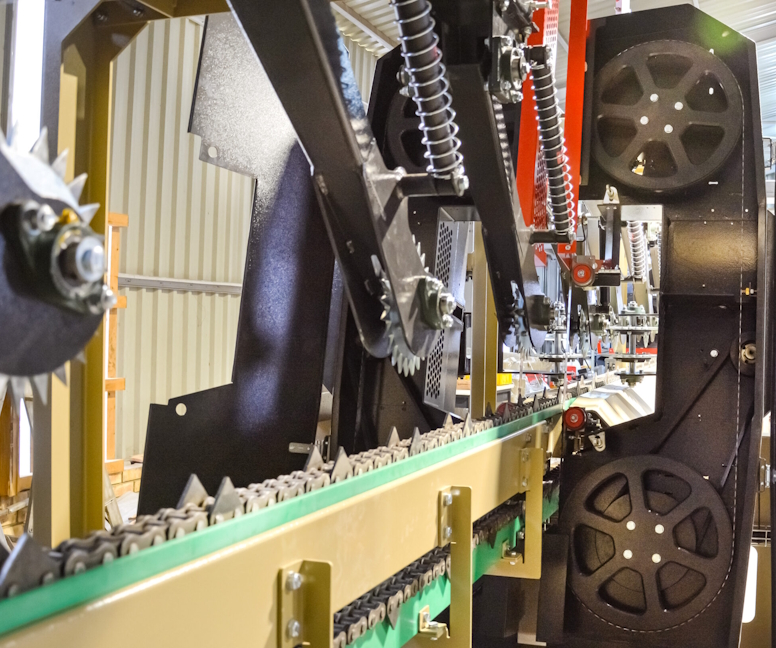

Source the vast majority of machine spare parts locally, affordably and most import immediately. Our customers have indicated ease of spare parts as a major benefit of using Rhino mills in their factories.
• Uncomplicated design for easy first time use
• SADC Certified to avoid importing duties in Africa
• Uncomplicated design for easy first time use
• SADC Certified to avoid importing duties in Africa
Built to exceed international standards and covered by extensive quality guarantee for customer peace of mind
Proudly built in Africa for the world. Buy local to support local industry and jobs
Speak to our team for a free machine demonstration either locally or by video. The quality will speak for itself.
Built to exceed international standards and covered by extensive quality guarantee for customer peace of mind
Proudly built in Africa for the world. Buy local to support local industry and jobs
Speak to our team for a free machine demonstration either locally or by video. The quality will speak for itself.
